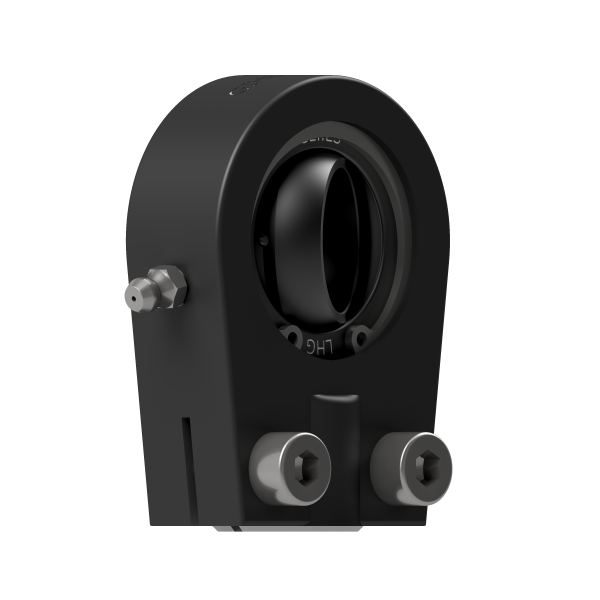

Product information "Rod end with inside thread and clampable GIHR-K..DO"

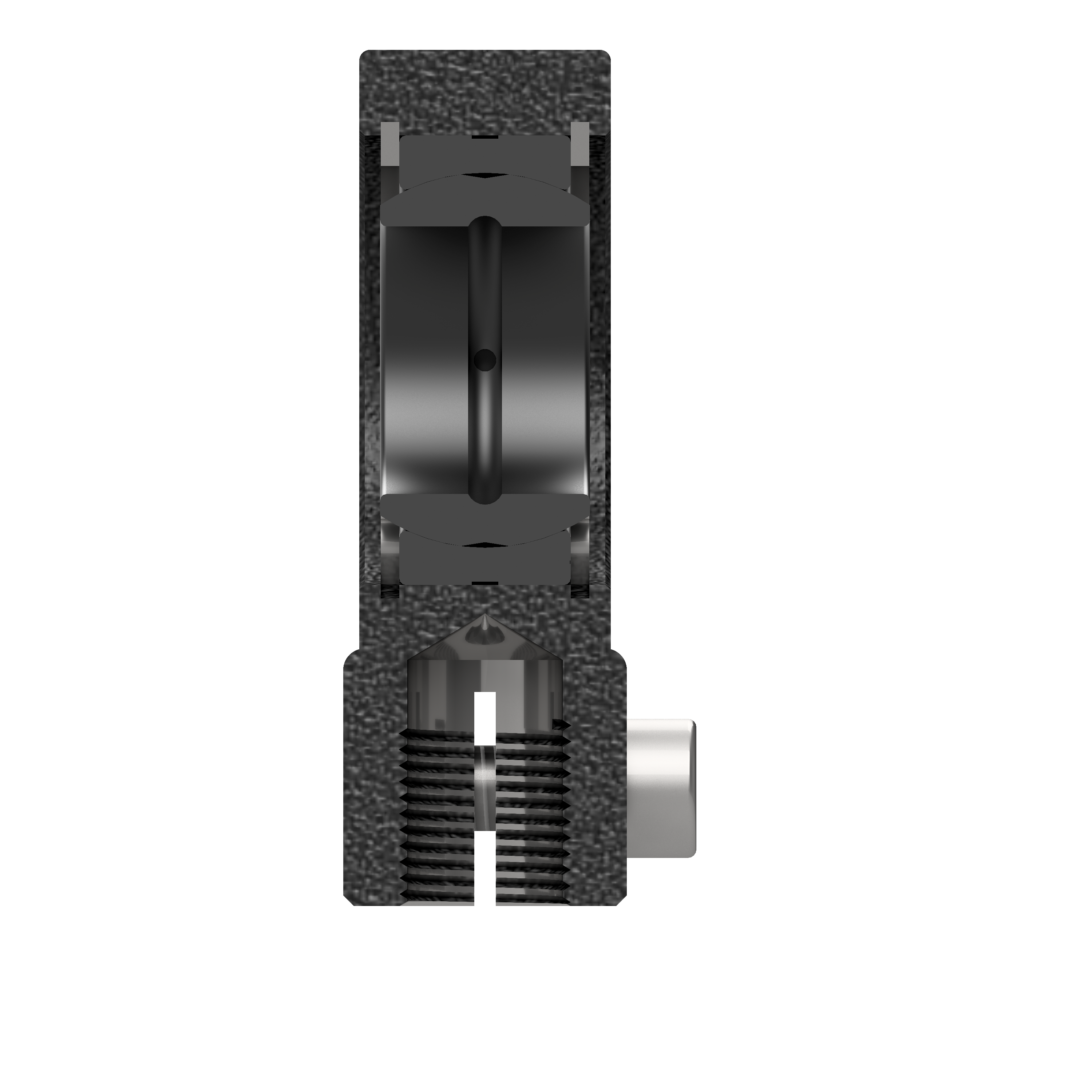

Rod end requiring maintenance GIHR-K..DO (SIR..ES) for screwing on and clamping. The slide pairing is made of steel/steel. Compared to GIHN-K..LO (SIQG..ES), this rod end is suitable for higher static load cases. It can be relubricated via the rod end or via the shaft. (Designation for right-hand thread: GIHR-K..; Designation for left-hand thread: GIHL-K..)
GIHR-K..DO is slightly wider compared to the other hydraulic rod ends and heavier.
Product Properties
Method of attachment
screwable/clampable
Maintenance
maintenance required
Sliding pairing
steel/steel
Temperature strain
-60°C up to + 150 °C
Materials
Head section
Steel up to d < 50mm; steel/cast iron for d < 63mm
Outer ring
Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatised
Inner ring
Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatised
