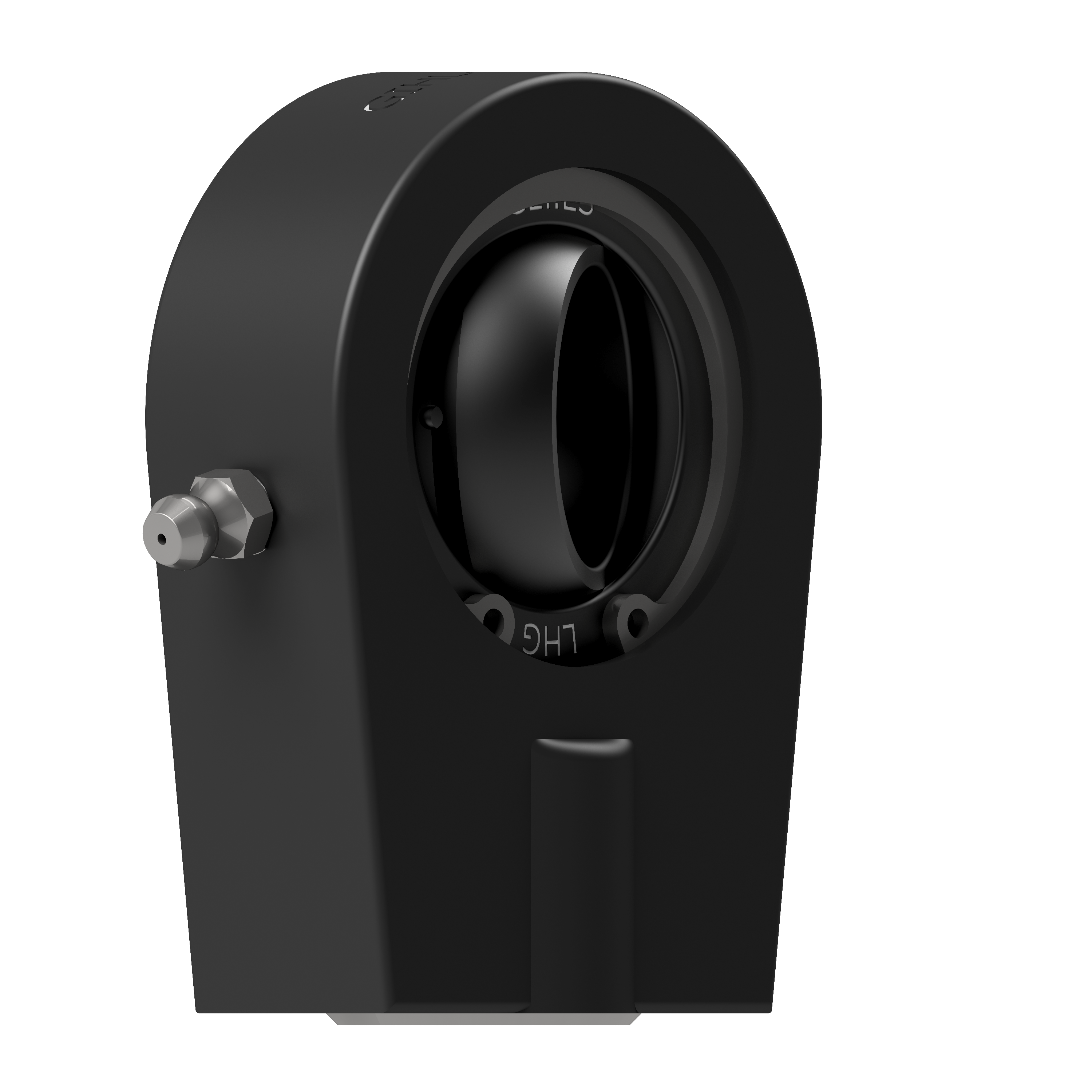

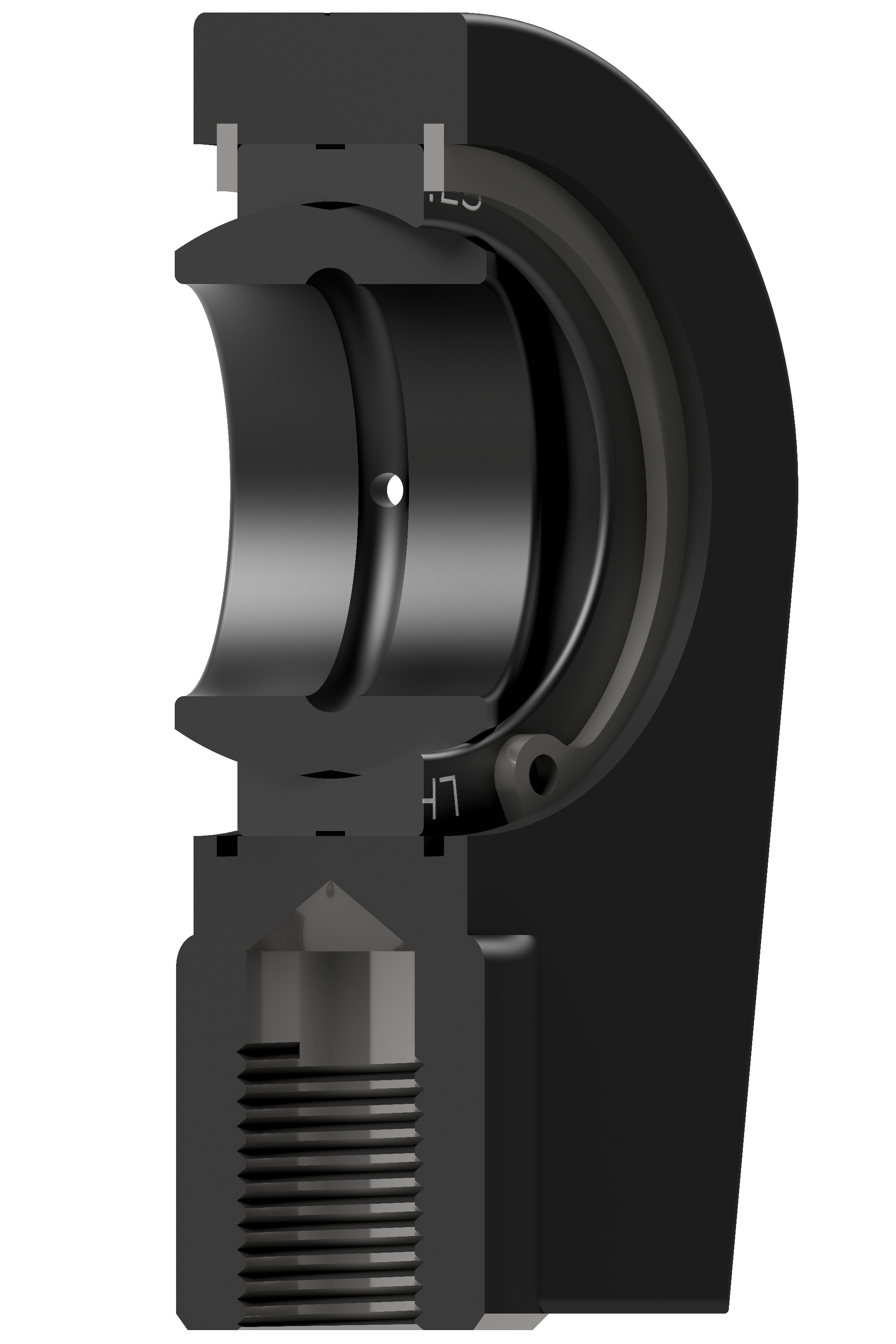

Rod end requiring maintenance GIHR-..DO (SIRD..ES) for screwing on. The slide pairing is made of steel/steel. It can be relubricated via the rod end or via the shaft. (Designation for right-hand thread: GIHR-…; Designation for left-hand thread: GIHL…)
GIHR-..DO is compared to GIHR-K..DO only for screwing on.
Product Properties
Method of attachment
screwable
Maintenance
maintenance required
Sliding pairing
steel/steel
Temperature strain
-60°C up to + 150 °C
Materials
Head section
Steel up to d < 50mm; steel/cast iron for d < 63mm
Outer ring
Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatised
Inner ring
Rolling bearing steel (100Cr6/GCr15), hardened, manganese-phosphatised
