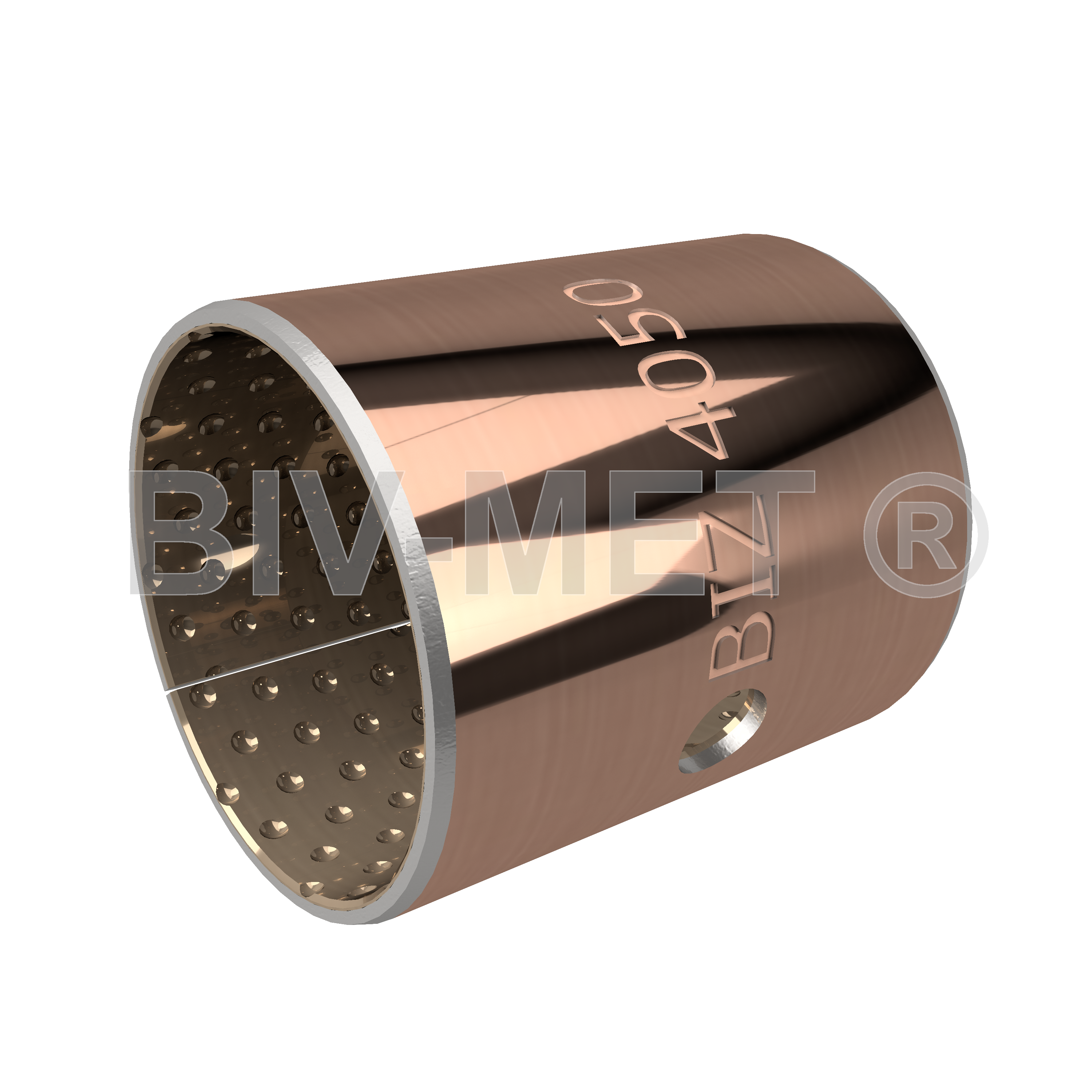

BIV - MET® Cylindrical bushing BIZ
Price after login
- Shop number: BIZ0000
Product information Product information "" For high load capacity and oscillating... more
Product information "BIV - MET® Cylindrical bushing BIZ"
Product information
""For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
BIV-MET is a low-maintenance bronze plain bearing. However, initial lubrication is required—both oil and grease lubrication are possible. Due to the lubricant depots, the relubrication intervals are greatly reduced! For high loads and oscillating movements as well as for rough operation and temperature load.
Werkstoffe
| Support material/Carrier material | steel copper plated (1.0330) |
| Sliding Layer | CuPb10Sn10 (leadfree on request) |
Produkteigenschaften
| Maintenance | low maintenance |
| Static load | ≤ 250 N/mm² |
| Dynamic load | ≤ 140 N/mm² |
| Sliding speed | ≤ 2,5 m/s |
| Friction value | 0,04 up to 0,12 µ |
| Temperature strain | -40 up to +250 °C |
| max. pv-value | 2,8 N/mm² x m/s |
Toleranzangaben
| Housing ø | H7 |
| Bushing inner ø after mounting | H9 |
| Shaft tolerance | f7 |
Wellenwerkstoff
| Material | Steel, hardened or unhardened, surface roughness ≤ Rz 6,3 |
Montagehinweise
| Housing | Installation chamfer, approx. 1.5 mm x 15 to 45° |
| Shaft | Installation chamfer, 5 mm x 15°, edges rounded. |
| Installation mandrel | It is advisable to use a suitable installation mandrel. It may be necessary to grease the outer surfaces during installation. |
