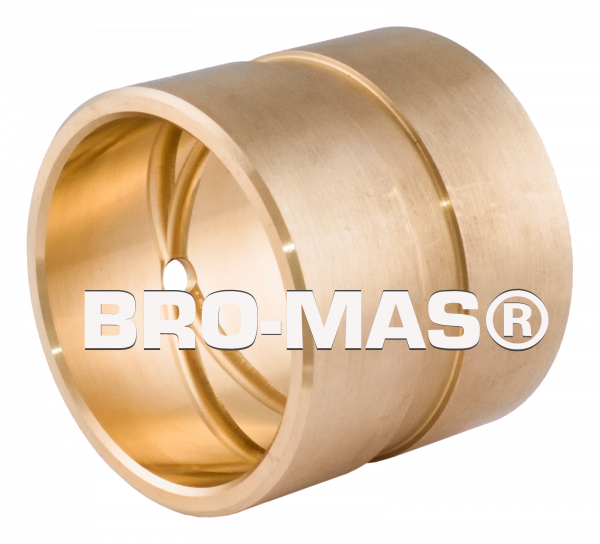

BRO - MAS® cylinder bearing BSZ

Price after login

1. Inner dimension

2. Outer dimension

3. Length

4. Lubrication system

  • BSZ118-202830
Soild turned bronze sliding bearing maintenance-bound BRO - MAS®. Suitable for operation in... more
Product information "BRO - MAS® cylinder bearing BSZ"

Soild turned bronze sliding bearing maintenance-bound BRO - MAS®. Suitable for operation in contaminated enviroment, good corrosion resistance, unsusceptible to impact load.

Sliding surface: CuSn12
Support material: CuSn12
Dynamic load: ≤ 60 N/mm²
Static load: ≤ 150N/mm²
Sliding speed: ≤ 10 m/s
Fricition value: 0,09 - 0,15 µ
max. PV-value: 2,8 N/mm² x m/s
Temperature strain: -40 bis +150 °C
Maintenance: maintenance-bound
Tolerance housing: H7
Tolerance after mounting: H8
Shaft tolerance: f7
Shaft material: Steel, hardened or untempered, roughness Rz ≤ 6,3
